Pillar Type Gasoline Portable Sampling Rig

Price: Please contact customer service to apply for a discount

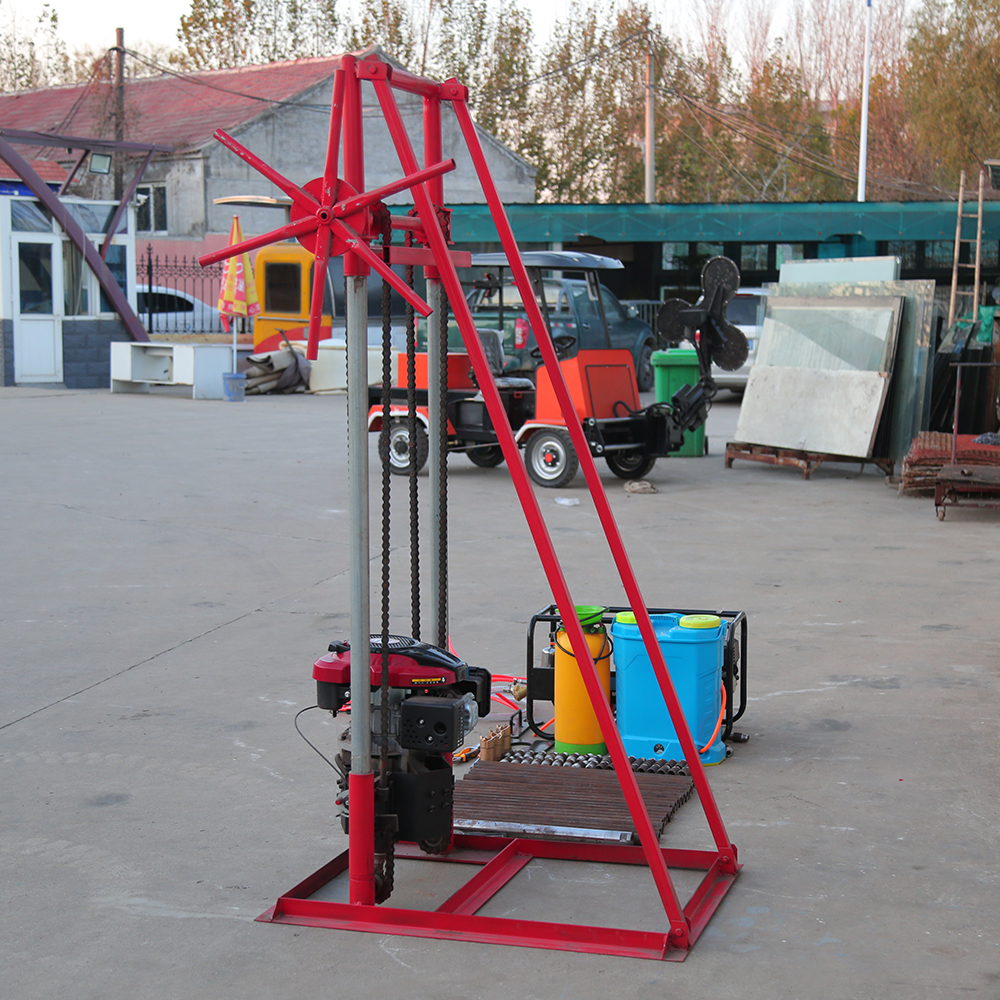

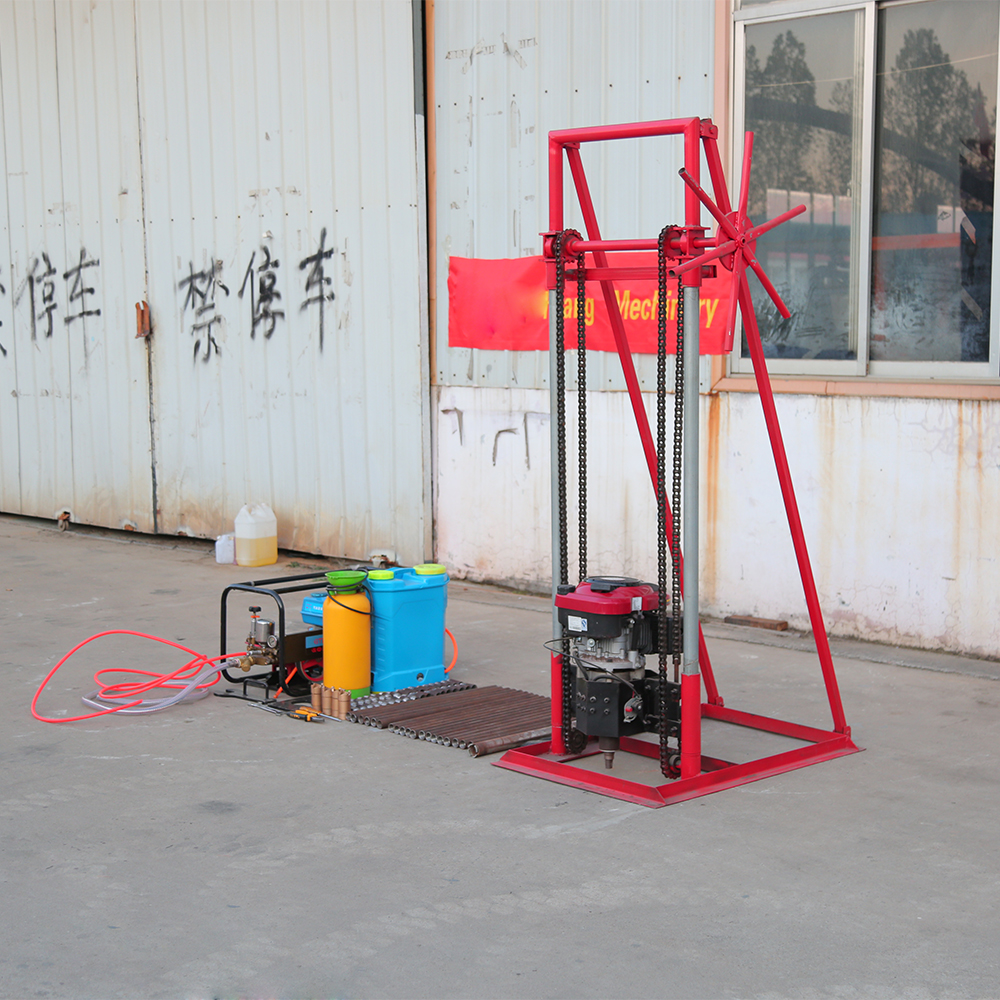

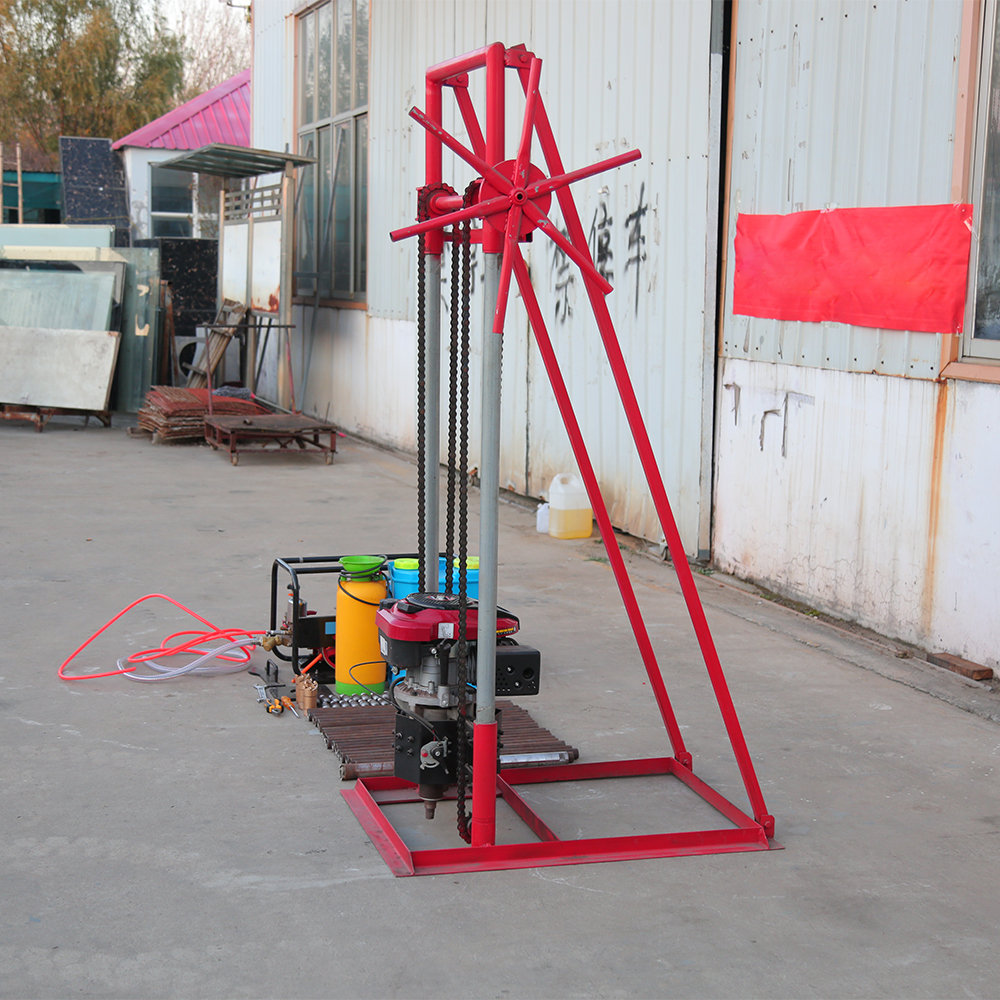

The rack-and-column backpack sampling rig can take soil samples, core samples, and guide holes for grouting. It is a multi-purpose micro-engineering rig. A core drilling rig that can be operated by 2 people, with a drilling depth of up to 30 meters.
We're here to help: Easy ways to get the answers you need.
The product description

Q: Can it be shipped to my door? Do I want to get my favoritePillar Type Gasoline Portable Sampling Rig?
A: Of course, my friend, but if your home is close to the port, we suggest that you can ship your goods directly to the port, which can save a lot of money! If the distance is far, you can find an inland transportation company by yourself, and we can communicate with him; we can also find an agent for you, but tolls during transportation will be very high (not recommended), and we will not charge any intermediate fees and additional service charges other than shipping. We just hope you get your favoritePillar Type Gasoline Portable Sampling Rig
Q: How do you ensure the security of transactions?
We can pay by business letter of credit/credit card/paypal and paypal secured transactions etc. Thus ensuring your payment security and entitlement. Make sure the goods can be safely delivered to you.
Please note that this is a large machine and should be shipped by sea,
Please tell us your address or your nearest port.


Drilling diameter (mm) 45-108
Drilling depth (m) 30
Drill pipe diameter (mm) 32
Gasoline Engine Displacement (cc) 224
Horsepower (HP) 6 (4.5KW)
Rig weight (KG) 100

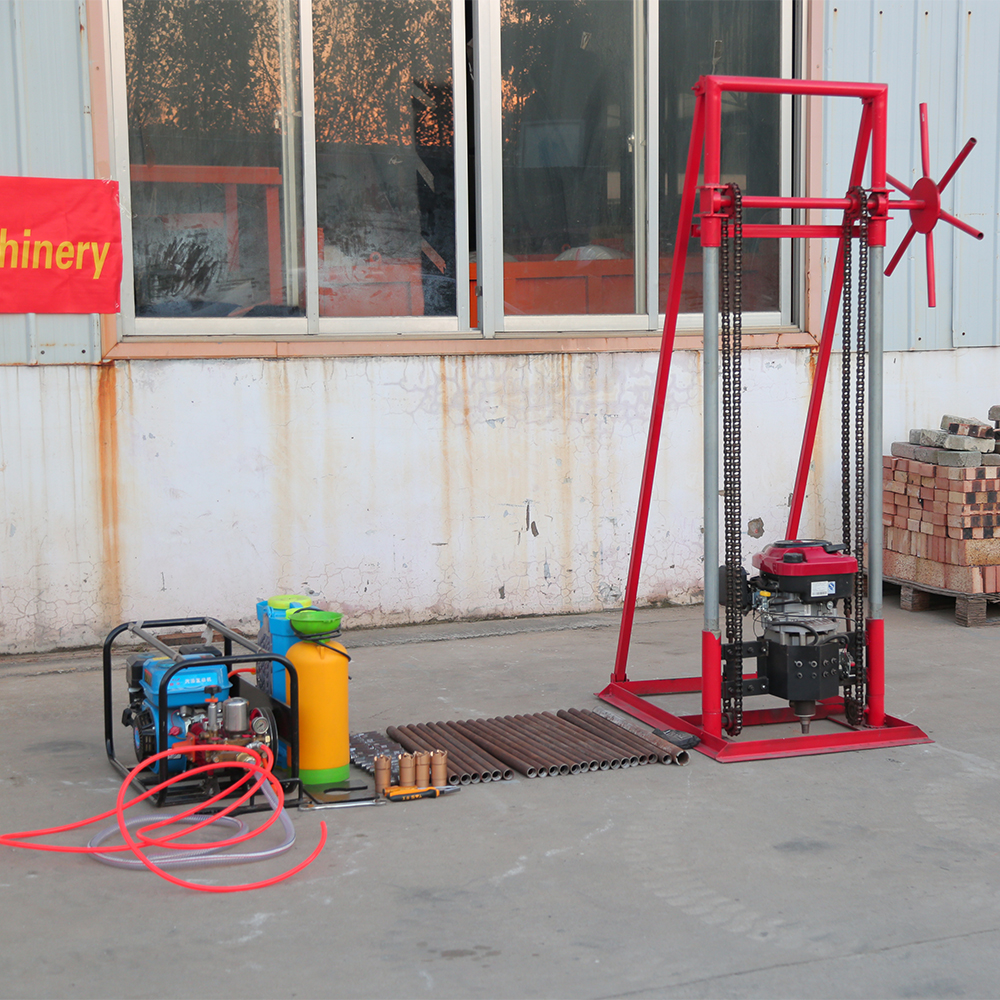

Name Model Unit Quantity
Gasoline Engine Sampling Rig ZC-30B Set 1
Drill pipe Φ32*750 pieces 20
Lock handle φ40 pay 20
Head Φ45 male/38 female 2
Core pipe 0.75m/piece φ45 piece 1
Alloy drill bit Φ46 pcs 1
Head Φ60 male/38 female 1
Core pipe 0.75m/piece φ60 piece 1
Alloy drill bit Φ60 pcs 1
Sweeping bit Φ73 pcs 1
Manual winch 1
wire rope set 1
Pulleys 1
fork handle 1
fork handle 1
Steering wheel set 1
